Welded multi-member node in SHS 40×40×2.5
A thin-walled SHS 40 node with several members cut and welded to each other. Plates and welds are checked in one model.
Connection library · Hollow section joints · suspended ceiling frame
← All connections

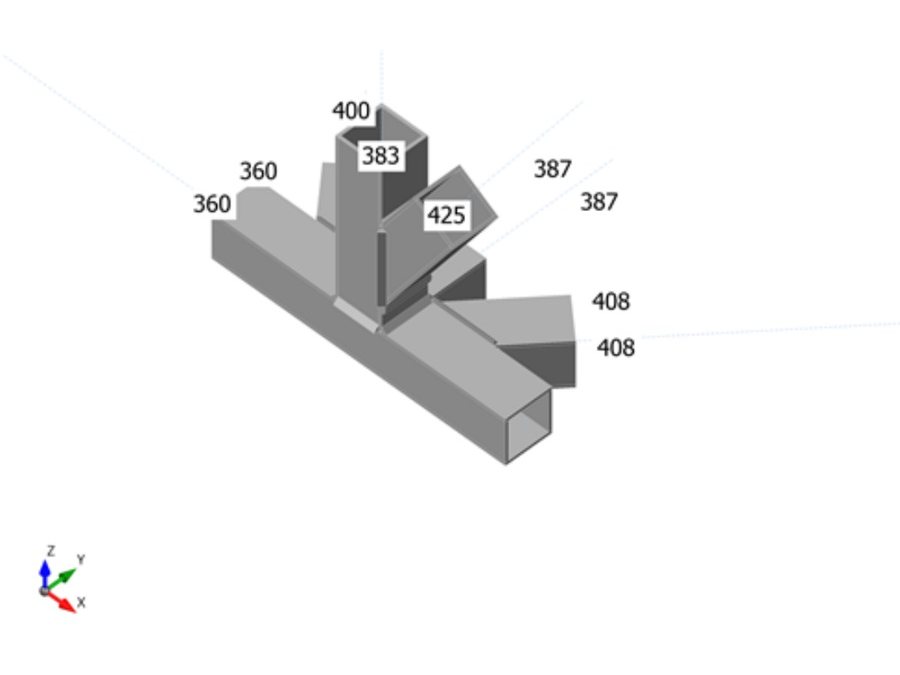

The 3D model is the connection as it was checked: members, plates, welds and bolts. Drag to rotate, scroll or pinch to zoom, tap a part type to hide it.
- Members
- SHS 40×40×2.5 (S235)
- Welds
- fillet, throat 3–4.2 mm
- Design code
- AISC 360-16
- Method
- Component-based finite element model (CBFEM)
How it was checked
Every plate, bolt and weld in one model

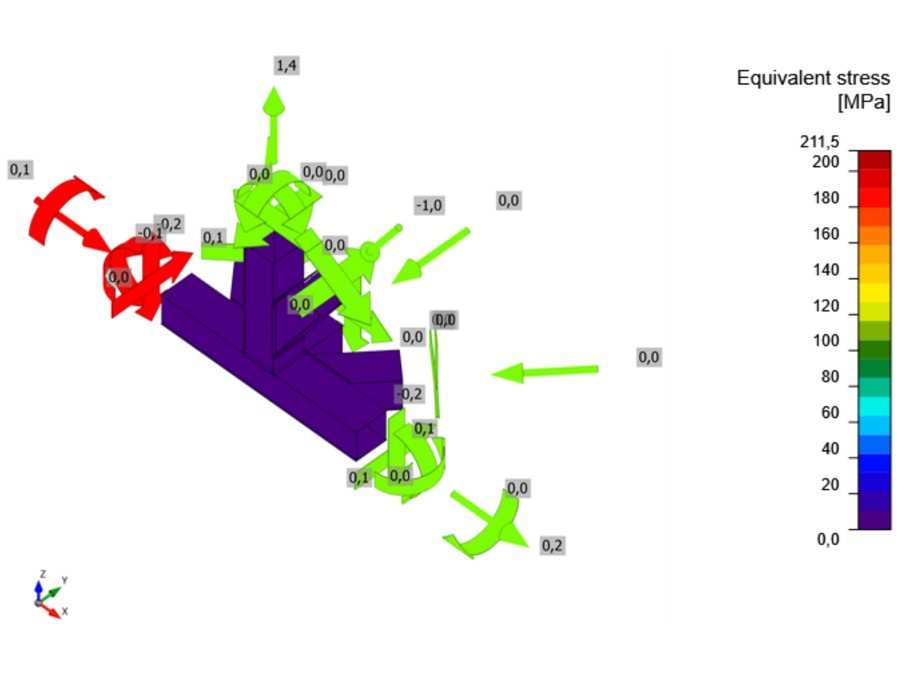

The joint is modelled with shell elements for the plates and member ends, and with nonlinear springs for bolts, welds and anchors (the component-based finite element method). The member forces are applied at the member ends and the model is loaded step by step to the full design load.
Plates pass when the plastic strain stays below the limit of the code; bolts, welds and anchors are checked against the component resistances of AISC 360-16. The bars above show each component’s utilisation for the governing load case.
