Welded knee: IPE 240 rafters on an HEB 300 column

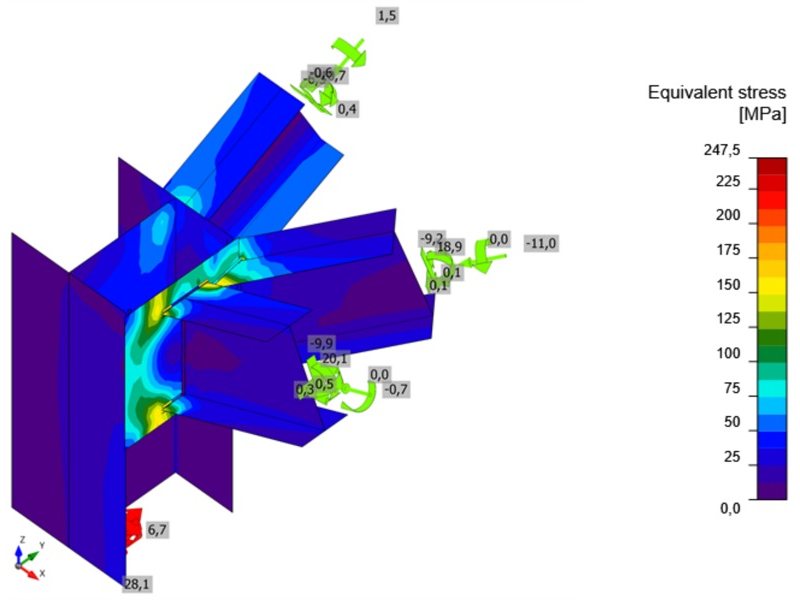

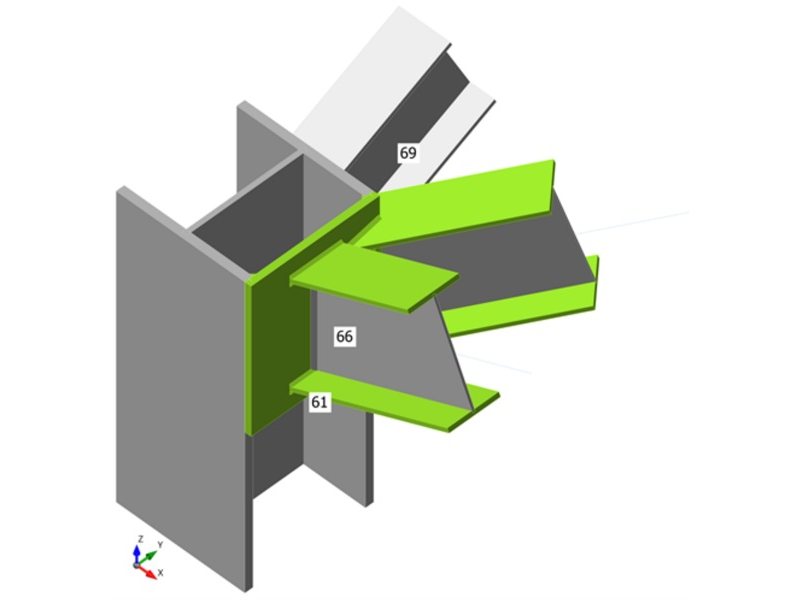

A fully welded knee where inclined IPE 240 rafters meet an HEB 300 column. The welds govern at 83 % of capacity.
Connection library · Beam-to-column and knee joints · industrial building
← All connections
The 3D model is the connection as it was checked: members, plates, welds and bolts. Drag to rotate, scroll or pinch to zoom, tap a part type to hide it.
- Members
- HEB 300 (S275), IPE 240 (S275)
- Welds
- fillet, throat 5.7–8 mm
- Design code
- AISC 360-16
- Method
- Component-based finite element model (CBFEM)
How it was checked
Every plate, bolt and weld in one model
The joint is modelled with shell elements for the plates and member ends, and with nonlinear springs for bolts, welds and anchors (the component-based finite element method). The member forces are applied at the member ends and the model is loaded step by step to the full design load.
Plates pass when the plastic strain stays below the limit of the code; bolts, welds and anchors are checked against the component resistances of AISC 360-16. The bars above show each component’s utilisation for the governing load case.
More beam-to-column and knee joints

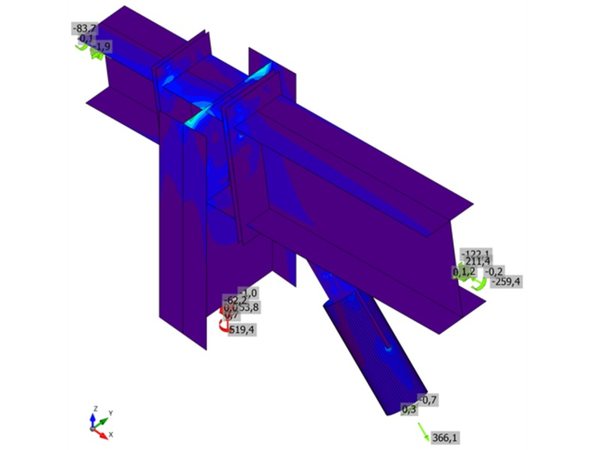

Beam-to-column and knee jointsHEB 400 beams over an HEB 600 column with a CHS brace
AISC 360-16 · Bolts 92 % of capacity

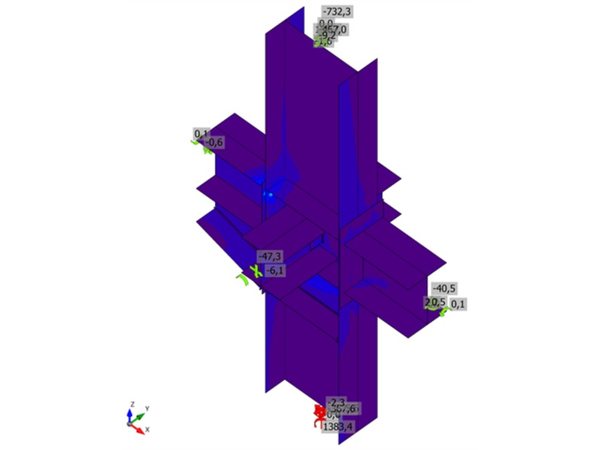

Beam-to-column and knee jointsHEB 400 and HEA 300 beams on an HEB 600 column
AISC 360-16 · Bolts 87 % of capacity

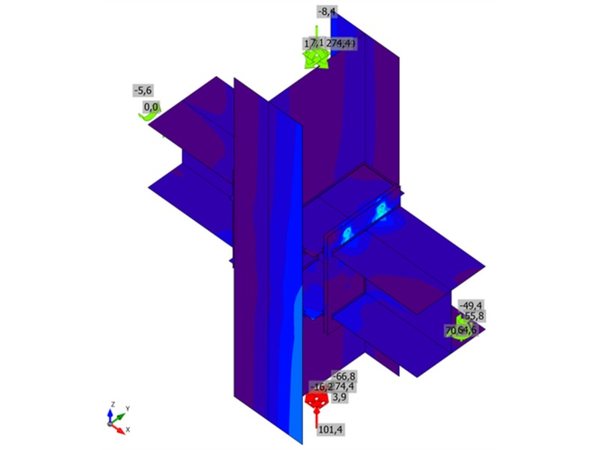

Beam-to-column and knee jointsTwo HEA 300 beams on an HEB 450 column through welded stubs
AISC 360-16 · Bolts 83 % of capacity

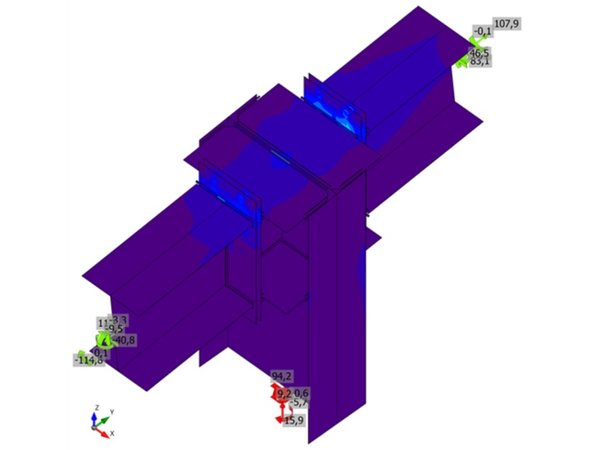

Beam-to-column and knee jointsHEB 450 beams on an HEB 600 column
