CHS 219.1 braces on an HEB 400 through a gusset plate
Three CHS 219.1 braces land on an HEB 400 through gusset and cover plates. The welds govern at 86 % of capacity.
Connection library · Bracing and gusset nodes · industrial hall
← All connections
The 3D model is the connection as it was checked: members, plates, welds and bolts. Drag to rotate, scroll or pinch to zoom, tap a part type to hide it.
- Members
- HEB 400 (S275), CHS 219.1×5.0 (S235)
- Plates
- 15–25 mm thick
- Bolts
- M16, M24
- Welds
- fillet, throat 4–10 mm
- Design code
- AISC 360-16
- Method
- Component-based finite element model (CBFEM)
How it was checked
Every plate, bolt and weld in one model

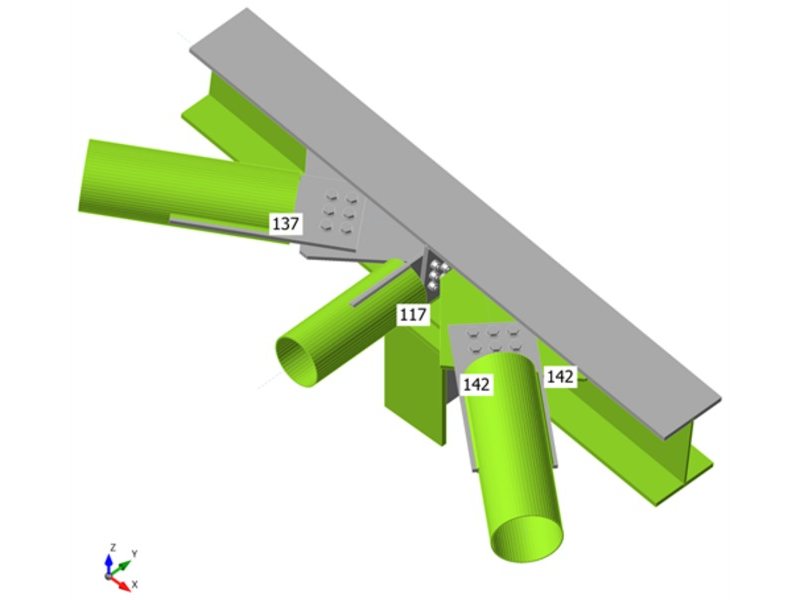

The joint is modelled with shell elements for the plates and member ends, and with nonlinear springs for bolts, welds and anchors (the component-based finite element method). The member forces are applied at the member ends and the model is loaded step by step to the full design load.

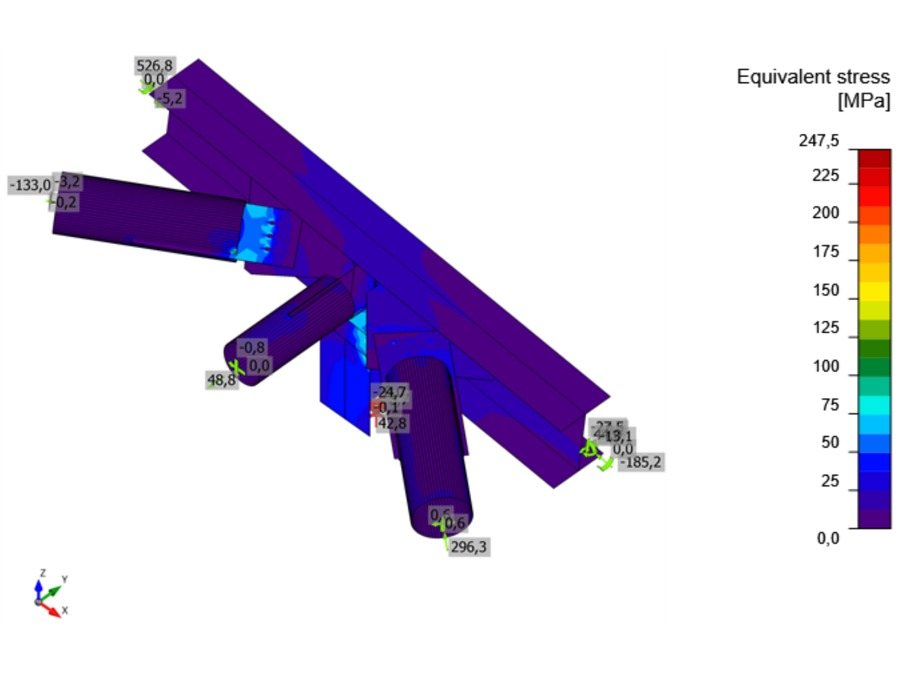

Plates pass when the plastic strain stays below the limit of the code; bolts, welds and anchors are checked against the component resistances of AISC 360-16. The bars above show each component’s utilisation for the governing load case.
More bracing and gusset nodes
Bracing and gusset nodesColumn node with UPN 160 and angle braces on an HEB 200
AISC 360-16 · Bolts 95 % of capacity
Bracing and gusset nodesCross node: UPN 200 members with angle braces
AISC 360-16 · Bolts 83 % of capacity
Bracing and gusset nodesTubular braces bolted to the web of a deep girder
AISC 360-16 · Welds 76 % of capacity
Bracing and gusset nodesCHS 219.1 braces on an HEB 600 column
AISC 360-16 · Welds 76 % of capacityNeed a connection like this designed?
Send the member sizes and forces, or the analysis model. You get the checked connection with its report and detail sketches.
